0.39 Inch Full HD LCOS Micro Display Optical Waveguide Technology Micro Display Module
LCOS (Liquid Crystal on Silicon), also known as silicon-based liquid crystal, is a very small matrix liquid crystal display device based on reflective mode. This matrix is made using CMOS technology and processed on silicon chips.
Product Details
| Display Technology | Waveguide |
| Virtula Screen Size | 86"(3M) |
| Resolution | 1920X1080 |
| Waveguide Lens Thickness | 1.5mm |
| FOV | 40° |
| Pupil Distance | 18mm |
| Transmittance Rate | ＞82% |
| LCOS Screen Size | 0.39" |
| Frame Rate | 60Hz |
LCOS Screen Describe

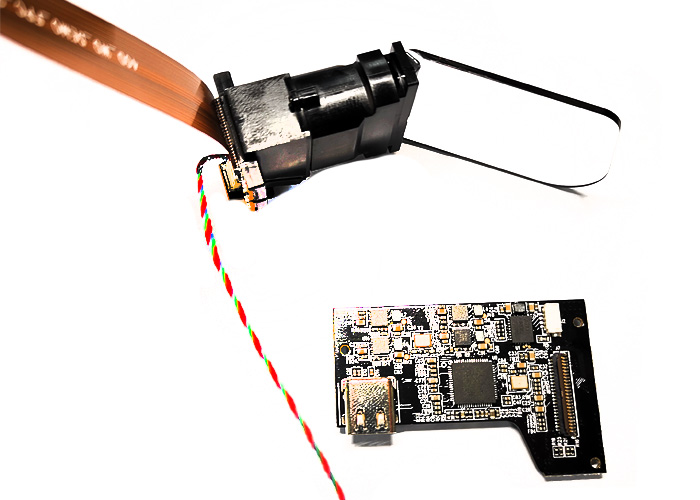

The LCOS micro display module is a micro near eye display optical module, which is mainly composed of optical wave guide, LCOS (Liquid Crystal On Silicon) screen, imaging lens and LED lighting module. It is mainly used for augmented reality virtual near eye display,and is a penetration auxiliary information display device.
The LCOS display module has high resolution : 1920*1080 (Full HD) , It uses optical waveguide technology, the lens thickness is only 1.5mm, the transmittance rate is higher than 80%.
LCOS Screen Details
- Display type: Reflective type LCOS(Liquid Crystal on Silicon)
- Frame Rate: 60Hz
- Interface mode: MIPI
- Conrast: 200:1
- Power: 350mW
- Grey stage: 256
- Debugging method: 12C interface debugging
Product Advantages
- This LCOS display module has high resolution (Full HD 1920*1080), It has rich shows details and clear viewing.
- The module adopts optical waveguide technology, which has the advantages of high resolution, large FOV (Field of View) and high transmittance.
- The module is thin and light. The thickness of the optical waveguide lens is 1.5mm, and the weight of the module is only 16g.
- The interface of drive board is TYPE-C. If other interfaces are needed, we can provide customization.
About Us
Anpo Intelligent Technology Co., Ltd. was established in early 2014 and has its own brand -- "ENMESI". Our boss has more than ten years of experience in consumer electronics.
ENMESI is a professional micro display modules company, Its main reserch and development products include integrated solutions for micro display modules,VR/AR smart glasses,head mounted displays,2D/3D smart video glasses, FPV drone video glasses, visual training glasses and night vision glasses. ENMESI also provides OEM and ODM services for many customers, thank you very much for choosing ENMESI.
